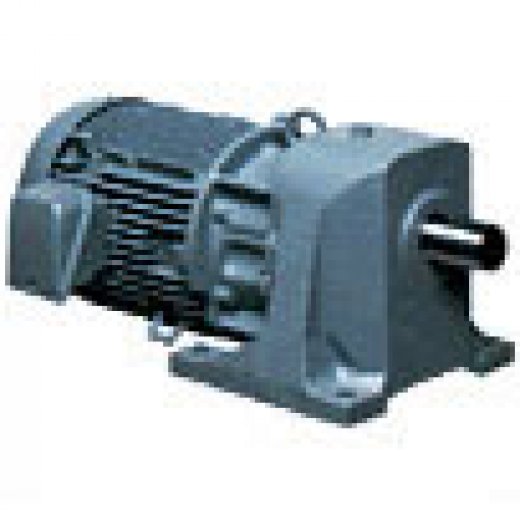

Động cơ giảm tốc HITACHI HA Series

Mã SP: HA Series

Liên hệ

Features
Toughness
Long life
Low noise
Adopt double seal structure
Output range: 0.4kW～3.7kW
For heavy loads, high frequency
suitable to hard impact loads.
It can operate at least 10-hours/day when the medium loads are applied.

Thông tin chi tiết

Gear Motor : HA-Series

Output range : 0.4～11kW
For medium lords (General purpose)

Model List

rpm (min-1)	50Hz	500	300	150	100	75	50	37.5	33	30	25	20	15	10	7.5
rpm (min-1)	60Hz	600	360	180	120	90	60	45	40	36	30	24	18	12	9
Gear Ratio		1/3	1/5	1/10	1/15	1/20	1/30	1/40	1/45	1/50	1/60	1/75	1/100	1/150	1/200
0.4, 0.75, 1.5, 2.2kW		○	○	○	○	○	○	○	○	○	○	○	○	○	○
3.7kW		○	○	○	○	○	○	○	○	○	○	○	○	—	—
0.4, 0.75kW, 1.5, 2.2kW		○	○	○	○	○	○	○	○	—	—	—	—	—	—
3.7kW		—	—	○	○	○	○	—	—	—	—	—	—	—	—
